Imported Quartz Laser Optical Lens

Basic Information
Place of Origin: Shaanxi, China(Mainland)
Brand Name: WEIMENG
Certification: CE,ISO9000
Model Number: WM-L-008
Minimum Order Quantity: 50 pcs
Price: USD9.5/piece
Packaging Details: 10*10*15cm carton packed
Delivery Time: 7 days
Payment Terms: T/T,paypal
Supply Ability: 1000 pcs per day
Detail Information
Material: Imported Quartz Wavelength: 1064nm
Coating: AR Diameter: 25.4mm
Tolearance: ±0.1mm Surface Quality: 40/20
Chamfer: 45 º*0.2mm Surface Color: Clear
Thickness: 4mm/5mm Shape: Plano
Application: Optical Equipment
High Light:

JGS1 Laser Optical Lens


1064nm Laser Optical Lens


Imported Quartz Laser Optical Lens

Product Description

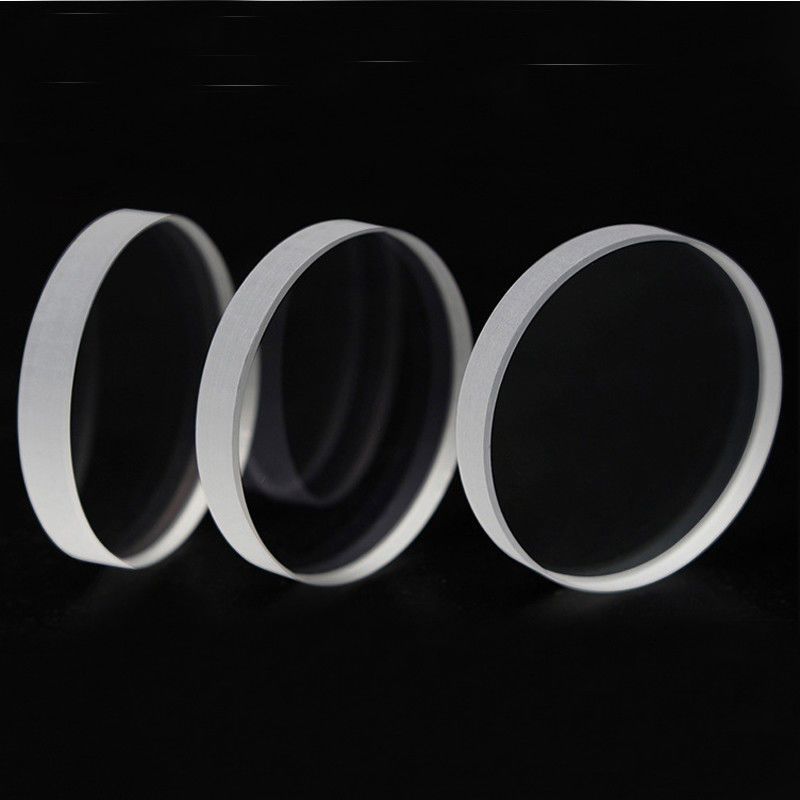

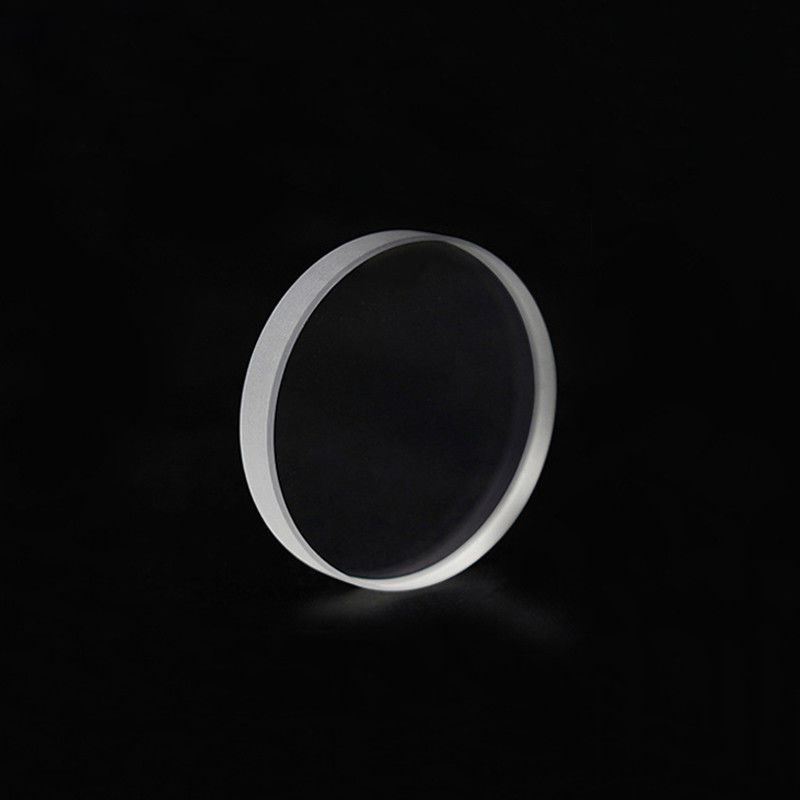

Circular Imported Quartz JGS1 laser protective lenses Dia:25.4mm Thick:4mm/5mm 1064nmAR coated optical window film 3000W


Laser protective lens:

The base material is quartz material, which is transparent. It is finely processed by grinding,

polishing, coating and other processes. From the side, it shows light color. It is mainly used in

laser cutting to prevent splashing of sundries and avoid splashing to damage the lens. It is

widely used in laser welding machine, laser cutting machine, laser marking machine and so on.

Product name Laser protective lens /optical lens/window film Imported Quartz Laser Optical Lens 0
Size 25.4*4mm/25.4*5mm
Coating  1064nmAR
Dia tolearance -0.1mm
Thickness tolearance ±0.1mm
Chamfer 45 degree*0.2mm
Application laser welding/cutting/marking machine
Material Imported Quartz JGS1
Advantage 1.Top quality glass with CE certificate,exporting to more 60 countries in the world
2.Unique designed strong wooden case, solving the problem of breakage
3.Professional sales team, offering personalized and dedicated services.
4.24-hours online, we could discuss the item whenever and wherever.


1.4-5 times harder than ordinary float glass, stronger resistance to thermal breakage

than annealed or heat strengthened glass.

2.once breakage occurs, the glass disintegrates into small cubical fagements, which

are relatively harmless to human body.

3.Suitable for use a safety glass as defined by consumer product safety association.Imported Quartz Laser Optical Lens 1Imported Quartz Laser Optical Lens 2
