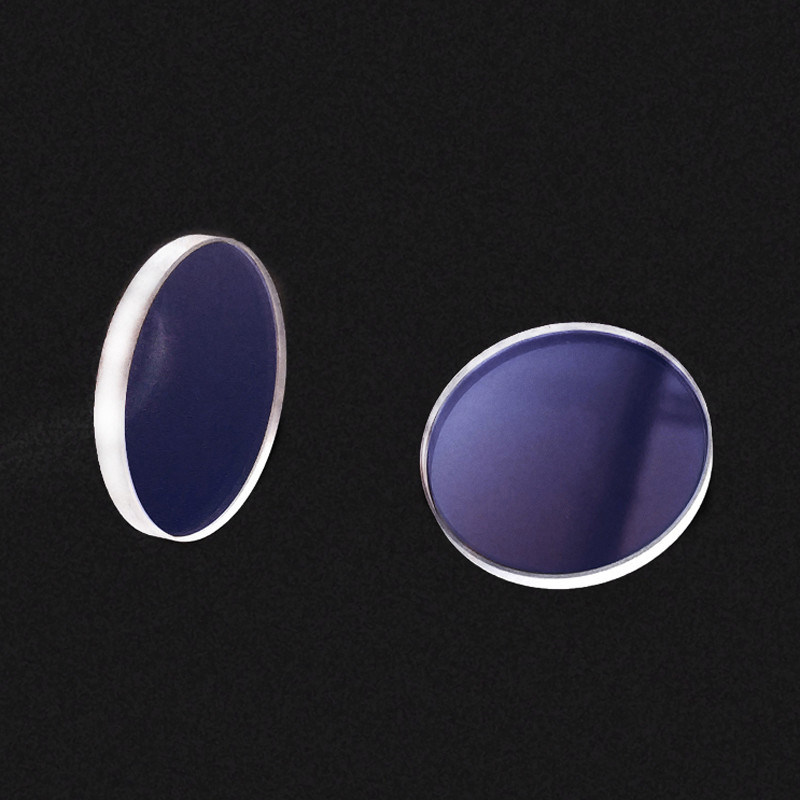

1064nm AR Fiber Laser Protective Lens

Basic Information
Place of Origin: Shaanxi, China(Mainland)
Brand Name: WEIMENG
Certification: CE,ISO9000
Model Number: WM-A-006
Minimum Order Quantity: 50 pcs
Price: USD8.1/piece
Packaging Details: 10*10*15cm carton packed
Delivery Time: 7 days
Payment Terms: T/T,paypal
Supply Ability: 1000 pcs per day
Detail Information
Material: H-K9L Wavelength: 1064nm
Coating: AR Diameter: 25mm
Tolearance: ±0.1mm Surface Quality: 40/20
Chamfer: 45 Degree Surface Color: Clear
Thickness: 1.5mm/2mm Shape: Plano
Application: Optical Equipment
High Light:

1064nm AR Fiber Laser Protective Lens

,

H-K9L Fiber Laser Protective Lens

,

PLANO Fiber Laser Protective Lens


Product Description

Dia:25mm Thickness:1.5mm/2mm 1064nmAR Coated H-K9L Glass Laser Protective Window Lens PLANO optical film Laser Machine



Laser protective lens:

The base material is K9 or quartz material, which is transparent. It is finely processed by grinding, polishing, coating and other processes. From the side, it shows light color. It is mainly used in laser cutting to prevent splashing of sundries and avoid splashing to damage the lens. It is widely used in laser welding machine, laser cutting machine, laser marking machine and so on.

Product name Laser protective lens /optical lens/window film 1064nm AR Fiber Laser Protective Lens 0
Size 25*1.5mm/25*2mm
Coating  1064nmAR
Dia tolearance -0.1mm
Thickness tolearance ±0.1mm
Chamfer 45 degree*0.2mm
Application laser welding/cutting/marking machine
Material H-K9L(BK7)
Advantage 1.Top quality glass with CE certificate,exporting to more 60 countries in the world
2.Unique designed strong wooden case, solving the problem of breakage
3.Professional sales team, offering personalized and dedicated services.
4.24-hours online, we could discuss the item whenever and wherever.

Fearture:

1.4-5 times harder than ordinary float glass, stronger resistance to thermal breakage than annealed or heat strengthened glass.

2.once breakage occurs, the glass disintegrates into small cubical fagements, which are relatively harmless to human body.

3.Suitable for use a safety glass as defined by consumer product safety association.

1064nm AR Fiber Laser Protective Lens 11064nm AR Fiber Laser Protective Lens 21064nm AR Fiber Laser Protective Lens 31064nm AR Fiber Laser Protective Lens 41064nm AR Fiber Laser Protective Lens 51064nm AR Fiber Laser Protective Lens 6
