products

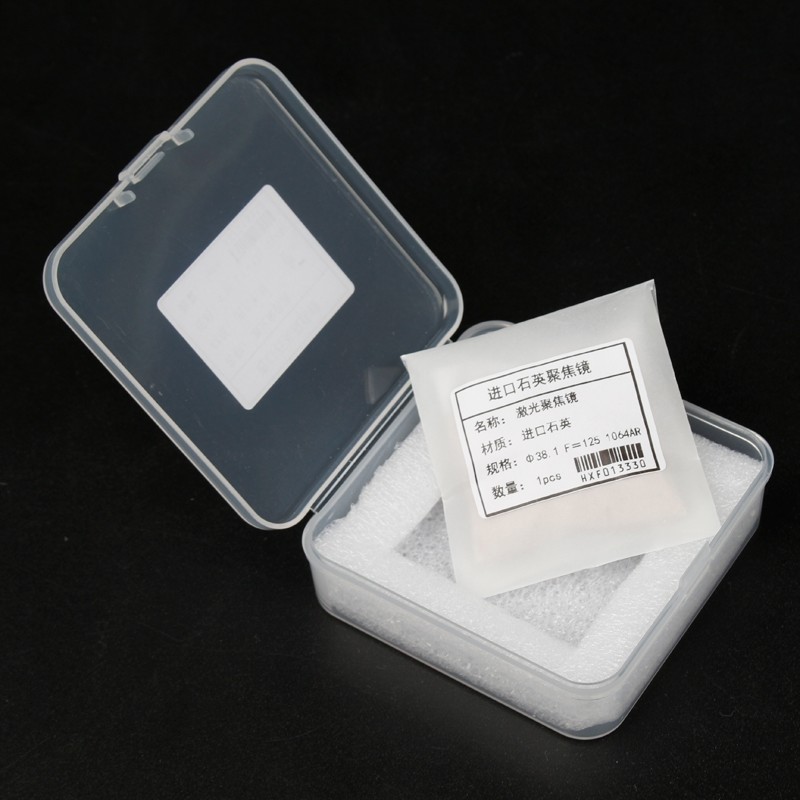

Imported Quartz 1064nm AR Coated 134*3mm Laser Protective Lenses

Basic Information
Place of Origin: Shaanxi, China(Mainland)
Brand Name: WEIMENG
Certification: CE,ISO9000
Model Number: WM-032
Minimum Order Quantity: 10 pcs
Price: USD67.8/piece
Packaging Details: 10*10*15cm carton packed
Delivery Time: 7 days
Payment Terms: T/T,paypal
Supply Ability: 1000 pcs per day
Detail Information
Material: Imported Quartz JGS1 Coating: 1064nmAR
Tolearance: ±0.1mm Surface Quality: 40/20
Chamfer: 0.2mm*45 º Surface Color: Clear
Application: Laser Machine Transmittance: 99%
Size: 134*3mm
High Light:

134*3mm laser protective lens

,

1064nm laser Optical lens

,

AR Coated 134*3mm Laser Protective Lenses


Product Description

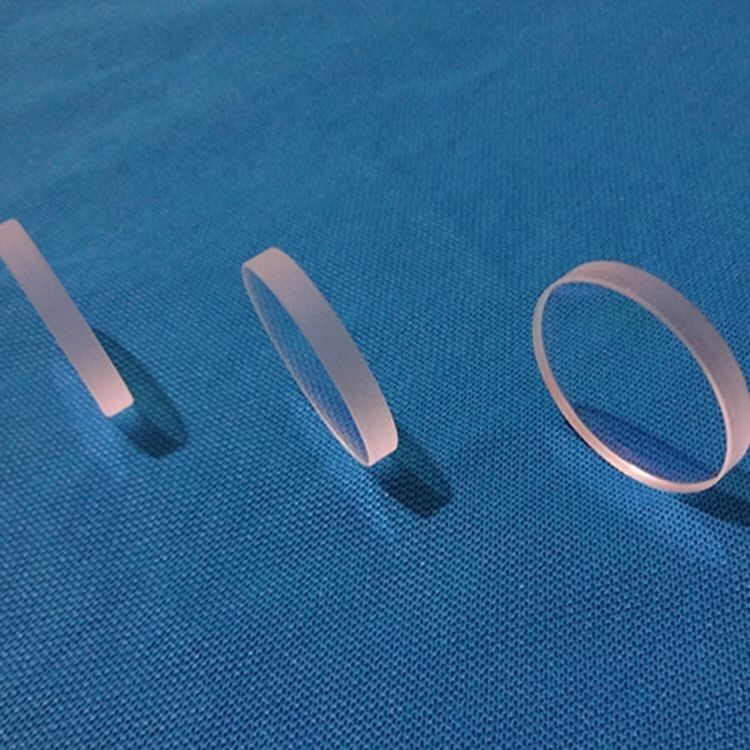

High quality Imported Quartz JGS1 laser protective lenses 1064nmAR coated φ134*3mm 99.9% optical window film 3000W

Imported Quartz 1064nm AR Coated 134*3mm Laser Protective Lenses 0

Name laser protective lens
Shape Plano/round
Diameter tolearance ±0.1mm
Transmittance 99.9%
Coating(Double-sided) 1064nmAR,Uncoated,available opon request
Softening point

719C

Parallelism <20"
Laser Endurance 10kw
Clear aperture >90%
Surface accuracy lambda/4@1064nm

Feature:
1. 4-5 times harder than ordinary float glass, stronger resistance to thermal breakage

than annealed or heat strengthened glass.

2. once breakage occurs, the glass disintegrates into small cubical fagements, which

are relatively harmless to human body.

3. Suitable for use a safety glass as defined by consumer product safety association.

Imported Quartz 1064nm AR Coated 134*3mm Laser Protective Lenses 1

Imported Quartz 1064nm AR Coated 134*3mm Laser Protective Lenses 2
