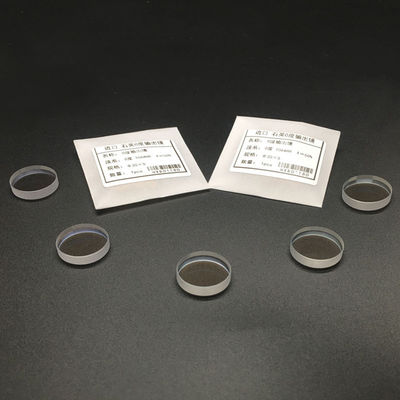

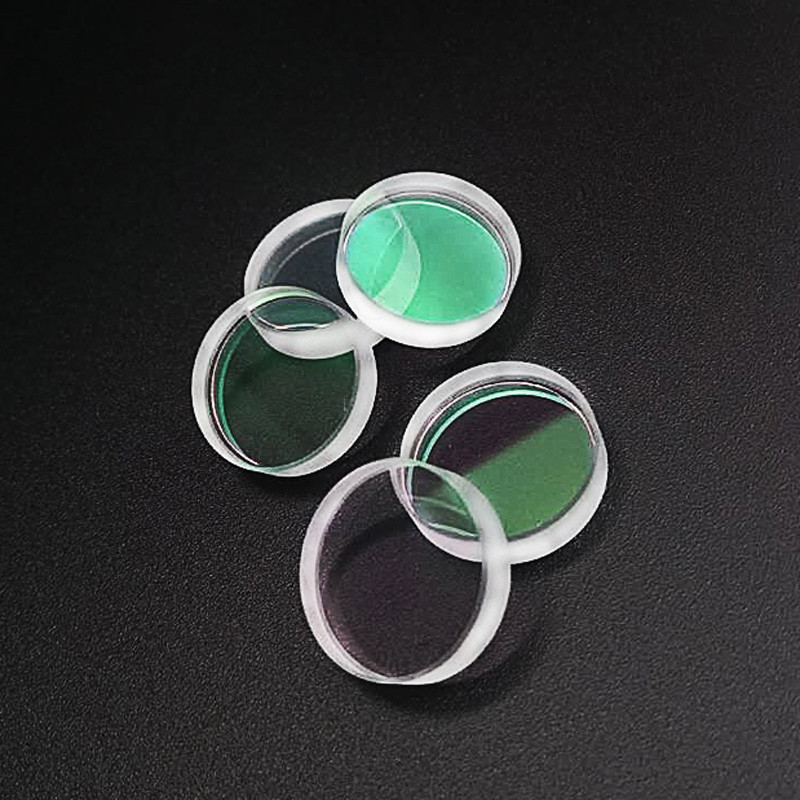

T70% 1064nm AR Coated 15*4mm 0 Degree Laser Output Lens

Basic Information
Place of Origin: Shaanxi,China(Mainland)
Brand Name: WEIMENG
Certification: CE,ISO9000
Model Number: WM-D-015
Minimum Order Quantity: 10 pcs
Price: USD16.3/piece
Packaging Details: 10*10*15 carton packed
Delivery Time: 7 days
Payment Terms: T/T,payapl
Supply Ability: 1000 pcs per day
Detail Information
Name: 0 Degree Laser Output Lens Orginal Place: Shaanxi, China(Mainland)
Wavelength: 1064nm Shape: Circular/plano
Material: Quartz Surface Quality: 40/20
Chamfer: 0.2mm*45° Coating: AR
T: 70% Diameter: 15mm
Thickness: 4mm
High Light:

0 degree output coupler mirror

,

JGS1 0 Degree Laser Output Lens

,

15*4mm Laser Output Lens


Product Description

LASER OUTPUT MIRROR 15*4mm T=70% 1064nmAR 0 degree JGS1 Quartz laser optical lens laser machine



Name 0 ° laser output mirror T70% 1064nm AR Coated 15*4mm 0 Degree Laser Output Lens 0
Size 15*4mm T=70%
Material Quartz
Tolearance ±0.1mm
Surface quality 40/20
Coating  1064nm AR
Parallelism <1/4
Aperture >90%



T70% 1064nm AR Coated 15*4mm 0 Degree Laser Output Lens 1T70% 1064nm AR Coated 15*4mm 0 Degree Laser Output Lens 2T70% 1064nm AR Coated 15*4mm 0 Degree Laser Output Lens 3T70% 1064nm AR Coated 15*4mm 0 Degree Laser Output Lens 4T70% 1064nm AR Coated 15*4mm 0 Degree Laser Output Lens 5T70% 1064nm AR Coated 15*4mm 0 Degree Laser Output Lens 6T70% 1064nm AR Coated 15*4mm 0 Degree Laser Output Lens 7
