Diameter 36mm Laser Optical Lens Quartz Glass 650 1064nmAR

Basic Information
Place of Origin: Shaanxi, China(Mainland)
Brand Name: WEIMENG
Certification: ISO.CE
Model Number: WM-L-045
Minimum Order Quantity: 50 pcs
Price: USD12.8 -USD14 /pcs
Packaging Details: carton packed
Delivery Time: within 5 days
Payment Terms: T/T,paypal
Supply Ability: 1000 pcs/week
Detail Information
Type: Laser Protective Lens Diameter: 36mm
Material: Quartz Glass Coating: 650 1064nmAR
Polised: Yes Chamfer: 0.02mm*45 Degree
Surface Quality: 40/20 Application: Laser Machine
Characteristics:: High Temperature Resistance Maximum Power: 3000W
High Light:

36mm Laser Optical Lens

,

1064nmAR Laser Optical Lens

,

650nmAR laser optical lens


Product Description

Diameter 36mm Quartz Glass Laser Protective Lens 650 1064nmAR



Description of Laser Protective Lens :



Laser Protective Lens is a kind of protective lens of optical laser lens. The main function of Laser Protective Lens is to prevent debris splashing and prevent splashing from damaging the lens. High damage threshold antireflection coatings were coated on both sides to reduce reflection. We try our best to provide all customers around the world with the most valuable products and the best service. At the same time, we can customize all kinds of protective lenses.



Laser protective lens is an optical glass plate which is polished to form two parallel surfaces. Laser Protective Lens can be used as protection elements in a variety of complex environments, and their high efficiency of transmittance makes them have little influence on the visible light passing through. The common coating is anti reflection film (AR) and scratch proof film (as), which can also improve the effect according to the needs of customers. It can be waterproof, dust-proof and scratch proof, and can be customized according to the requirements of customers. Optical window is the front protection piece of optical system, which can be used for the packaging of ccd/cmos chip, the protection of optical instruments, measuring instruments and digital equipment, various laser equipment, cover plates on laser diodes, etc.



Parameter of Laser Protective Lens



Material Imported Quartz JGS1
Wavelegnth 650 1064nm
Coating Double sided coated(AR)
Diameter 36mm
Diameter tolearance +/-0.1mm
Thickness 5mm
Thickness tolearance ±0.1mm
Transmittance 99.8%
Clear Aperture <80%
Surface quality 40-20
Parallelism <1 min



Application of Laser Protective Lens



In order to protect the focusing lens, a laser protection lens is designed. For this reason, the cost of laser equipment in the processing process is saved, and it is widely used.





The basic principle of Laser Protective Lens detection



The impurities in the laser protection lens must be different from those in the optical window. When light is incident to the optical window, the reflection and refraction of various impurities are different from those around the optical window. For example, when the uniform light is perpendicular to the optical window, for example, there is no impurity in the optical window, the direction of emission will not change, and the detected light is even; When there is impurity in the optical window, the emitted light will change the detected image accordingly. Due to the presence of impurities, stress concentration and deformation occur around them, and it is easy to observe in the image. If light transmission defects (such as cracks, bubbles, etc.) are encountered, the light will be refracted at the defect and the intensity of light is greater than that around, so the light detected on the camera target will be enhanced accordingly; If there is any impurity in the light absorbing type (such as sand), the light position at the defect will be weakened, and the light detected on the camera target will be weaker than the surrounding. Through analyzing the intensity and characteristics of the image signal collected by the camera, the corresponding defect information is obtained.





Advantage of Laser Protective Lens :



1. Complete standards → our company's Laser Protective Lens are complex in variety and sufficient in stock to meet the needs of our customers; It has the characteristics of high anti damage threshold, low scattering and low absorption.



2. Processing coating → selecting excellent substrate, slicing, rounding, polishing, polishing and coating to make products; The lens is coated with high antireflection film on both sides, which is stable and durable.



3. Other standard maintenance lenses are all inclusive, and the variety is complex. Welcome to consult!



For the laser maintenance lens device, the first step is to check the appearance of the laser maintenance lens and its smoothness. When installing the laser maintenance lens, the finger mother should hold the edge of the lens. When installing the lens, do not touch the surface of the maintenance lens. Make sure that the lens installed in the laser cutting head is clean, which is the longest use, Otherwise, dirty spots on the surface of laser maintenance lenses will burn off. Short service life.

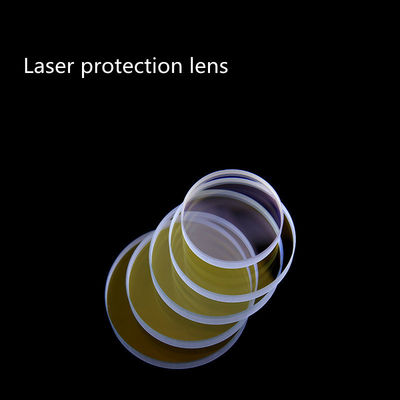

Photo of Laser Protective Lens :



Diameter 36mm Laser Optical Lens Quartz Glass 650 1064nmAR 0
