| Place of Origin: | Shaanxi, China(Mainland) |
|---|---|
| Brand Name: | WEIMENG |
| Certification: | CE,ISO9000 |
| Model Number: | WM-A-015 |
| Minimum Order Quantity: | 50 pcs |
| Price: | USD9.2/piece |
| Packaging Details: | 10*10*15cm carton packed |
| Delivery Time: | 7 days |
| Payment Terms: | T/T,paypal |
| Supply Ability: | 1000 pcs per day |
| Material: | H-K9L | Wavelength: | 1064nm |
|---|---|---|---|
| Coating: | AR | Diameter: | 39mm |
| Tolearance: | ±0.1mm | Surface Quality: | 40/20 |
| Chamfer: | 45 º*0.2mm | Surface Color: | Clear |
| Thickness: | 1.5mm/3mm | Shape: | Plano |
| Application: | Optical Equipment | Power: | 0-300W |
| High Light: | 39*3mm Laser Protective Window,1064nm laser optical mirror,39*1.5mm Laser Protective Lens |
||

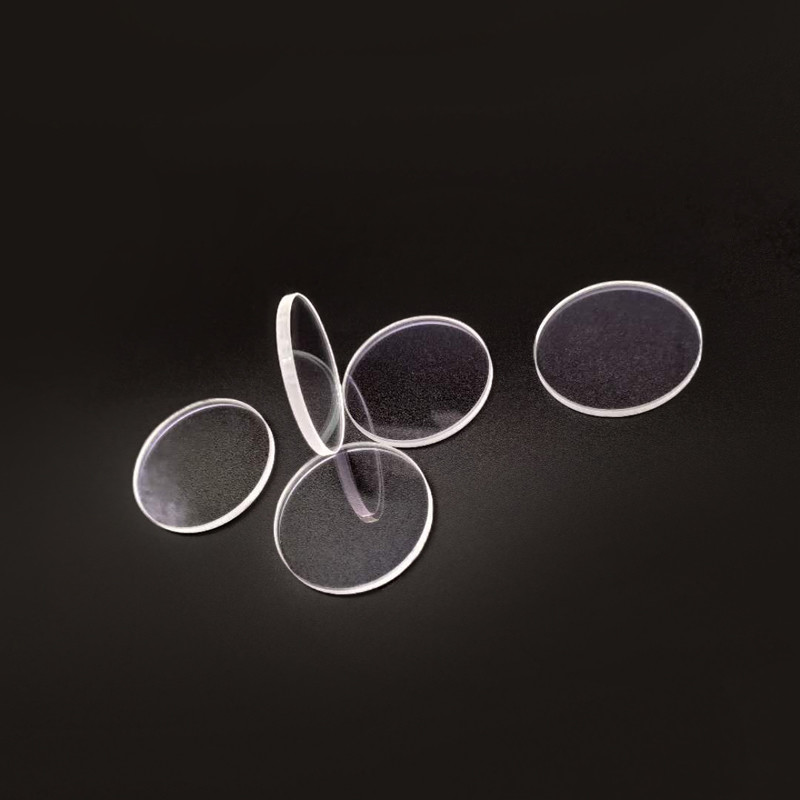

Dia:39mm Thickness:1.5mm/3mm 1064nmAR coating laser cutting machine H-K9L safety protective window for fiber collimator
Laser protective lens:
The base material is K9 or quartz material, which is transparent. It is finely processed
by grinding, polishing, coating and other processes. From the side, it shows light color.
It is mainly used in laser cutting to prevent splashing of sundries and avoid splashing
to damage the lens. It is widely used in laser welding machine, laser cutting machine,
laser marking machine and so on.
| Product name | Laser protective lens /optical lens/window film |  |
| Size | 39*3mm/39*1.5mm | |
| Coating | 1064nmAR | |
| Dia tolearance | -0.1mm | |
| Thickness tolearance | ±0.1mm | |
| Chamfer | 45 degree*0.2mm | |
| Application | laser welding/cutting/marking machine | |
| Material | H-K9L(BK7) | |
| Advantage | 1. Top quality glass with CE certificate,exporting to more 60 countries in the world | |
| 2. Unique designed strong wooden case, solving the problem of breakage | ||
| 3. Professional sales team, offering personalized and dedicated services. | ||
| 4. 24-hours online, we could discuss the item whenever and wherever. |
Fearture:
1. 4-5 times harder than ordinary float glass, stronger resistance to thermal breakage
than annealed or heat strengthened glass.
2. once breakage occurs, the glass disintegrates into small cubical fagements,
which are relatively harmless to human body.
3. Suitable for use a safety glass as defined by consumer product safety association.
The main function of the laser protection lens is to prevent dust and splash damage to the
focusing lens of laser welding equipment and laser cutting machine. Can protect the damage
of the focus lens, due to the AR coating on the surface is designed according to the wavelength
1064nm of the laser machine, so the laser lens laser protective windows can extend the service
life of the laser machine, reduces the use-cost .
