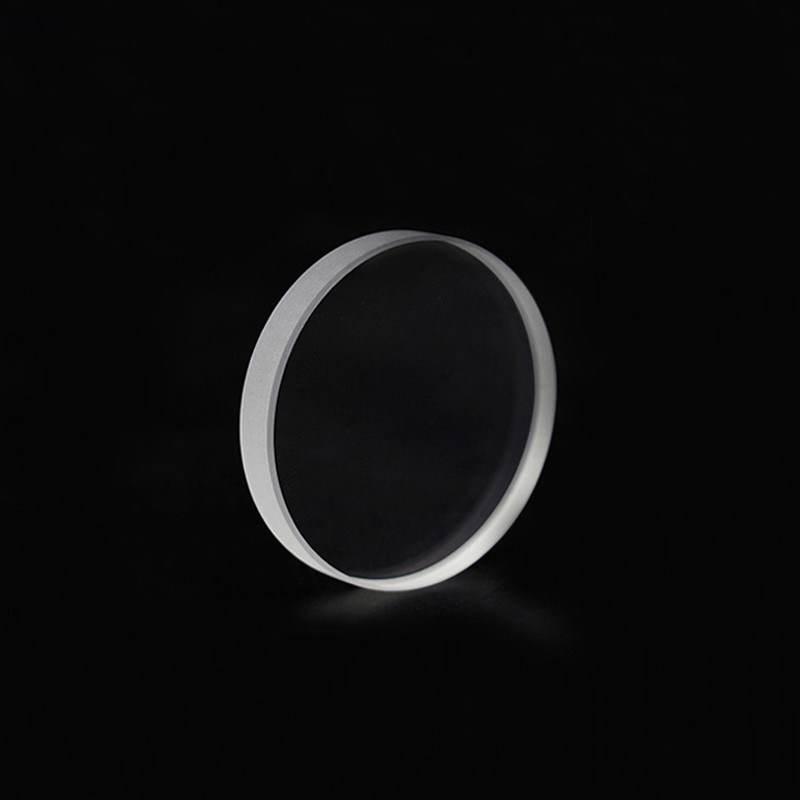

125*4mm 1064nm AR Coated Glass Fiber Laser Protective Window

Basic Information
Place of Origin: Shaanxi, China(Mainland)
Brand Name: WEIMENG
Certification: CE,ISO9000
Model Number: WM-A-027
Minimum Order Quantity: 10 pcs
Price: USD32.8/piece
Packaging Details: 10*10*15cm carton packed
Delivery Time: 7 days
Payment Terms: T/T,paypal
Supply Ability: 1000 pcs per day
Detail Information
Material: H-K9L Wavelength: 1064nm
Coating: AR Diameter: 125mm
Tolearance: ±0.1mm Surface Quality: 40/20
Chamfer: 45 º*0.2mm Surface Color: Clear
Thickness: 4mm Shape: Plano
Application: Optical Equipment
High Light:

125*4mm Laser Protective Window

,

1064nm laser protective window

,

AR Coated laser protective window


Product Description

High Transmittance 125*4mm 1064nmAR Coated H-K9L Glass fiber Laser Protective Window Lens PLANO optical film



Product name Laser protective lens /optical lens/window film 125*4mm 1064nm AR Coated Glass Fiber Laser Protective Window 0
Size 125*4mm
Coating  1064nmAR
Dia tolearance -0.1mm
Thickness tolearance ±0.1mm
Chamfer 45 degree*0.2mm
Application laser welding/cutting/marking machine
Material H-K9L(BK7)
Advantage 1. Top quality glass with CE certificate,exporting to more 60 countries in the world
2. Unique designed strong wooden case, solving the problem of breakage
3. Professional sales team, offering personalized and dedicated services.
4. 24-hours online, we could discuss the item whenever and wherever.



Laser protective lens:

The base material is K9 or quartz material, which is transparent. It is finely processed by grinding,

polishing, coating and other processes. From the side, it shows light color. It is mainly used in

laser cutting to prevent splashing of sundries and avoid splashing to damage the lens. It is

widely used in laser welding machine, laser cutting machine, laser marking machine and so on.



Fearture:

1. 4-5 times harder than ordinary float glass, stronger resistance to thermal breakage

than annealed or heat strengthened glass.

2. once breakage occurs, the glass disintegrates into small cubical fagements, which

are relatively harmless to human body.

3. Suitable for use a safety glass as defined by consumer product safety association.125*4mm 1064nm AR Coated Glass Fiber Laser Protective Window 1

125*4mm 1064nm AR Coated Glass Fiber Laser Protective Window 2
