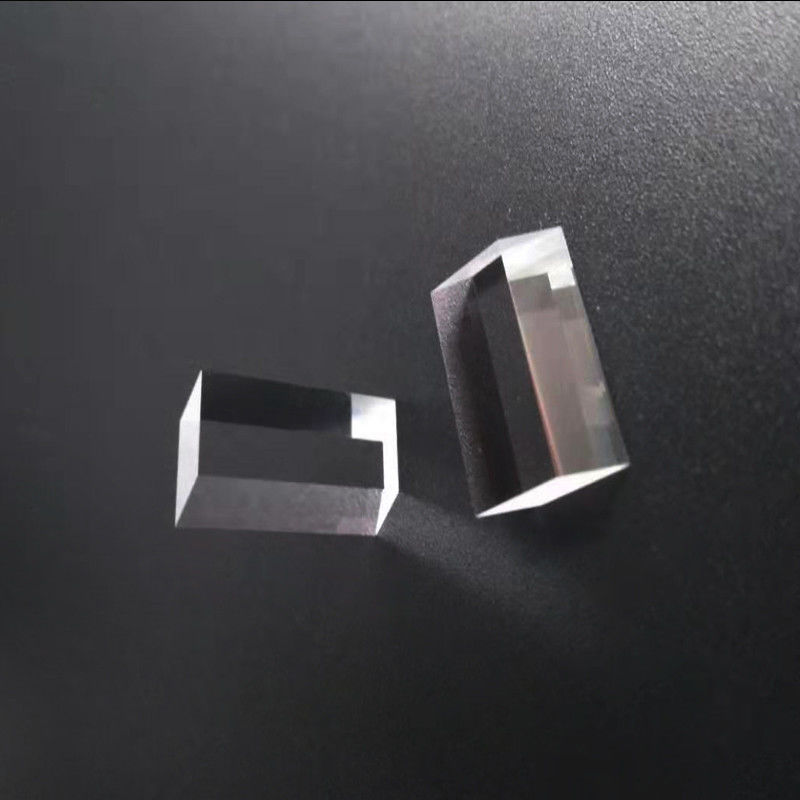

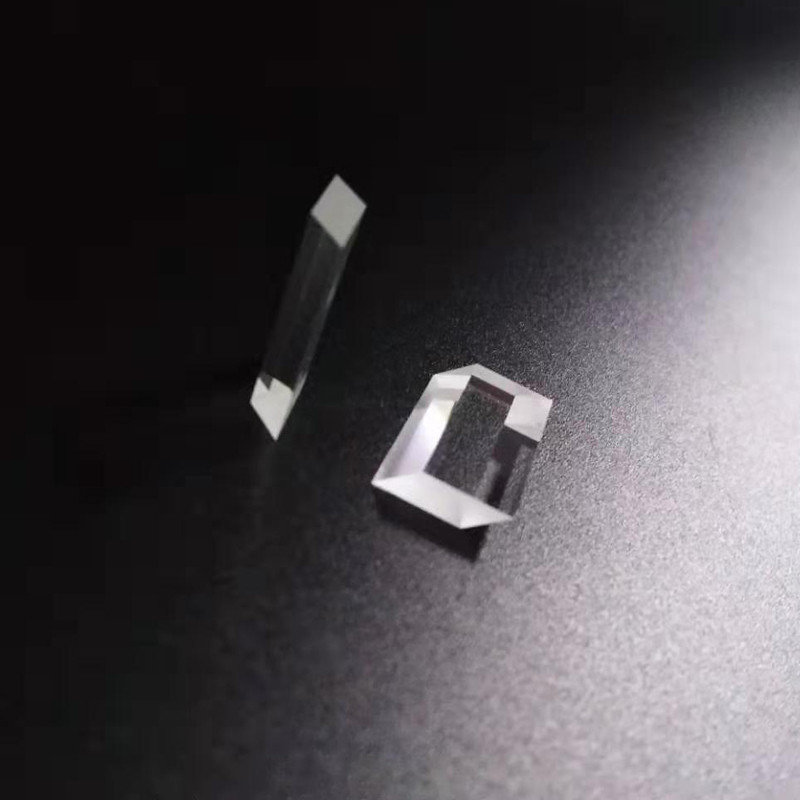

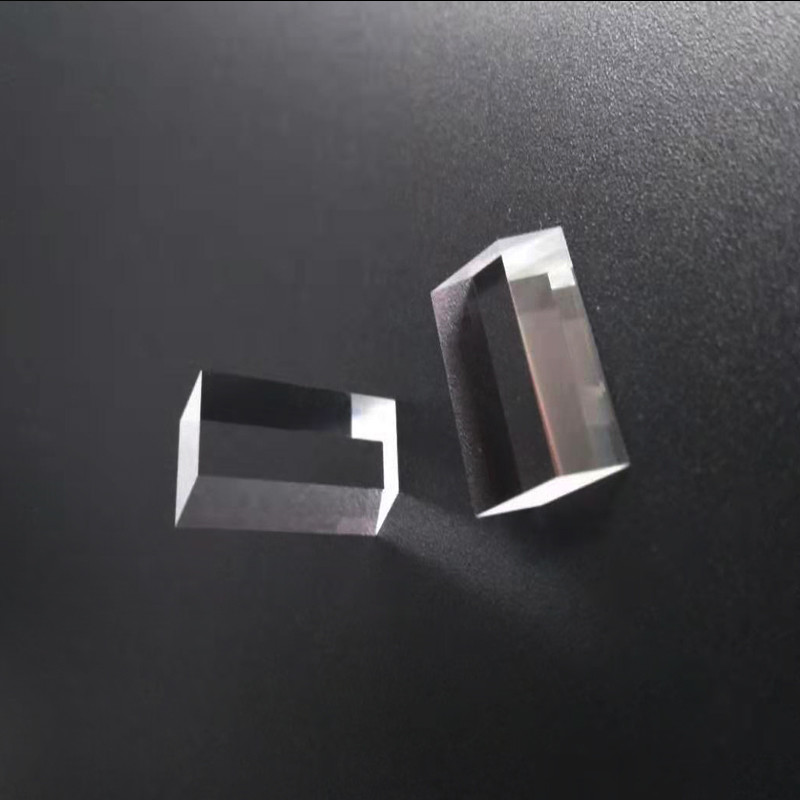

H-K9L 32*2.12*5.54mm 700nm AR Coating Rhombic Prism KTP Crystals

Basic Information
Place of Origin: Shaanxi,China(Mainland)
Brand Name: WEIMENG
Certification: CE,ISO
Model Number: WM-G-006
Minimum Order Quantity: 10 pieces
Price: USD150/piece
Packaging Details: 10*10*15cm carton packed
Delivery Time: 7 days
Payment Terms: T/T,Paypal
Supply Ability: 100 pieces per day
Detail Information
Name: Rhombic Prism Lens Size: 32*2.12*5.54mm
Tolearance: ±0.1mm Surface Quality: 40/20
Application: Stereomicroscope, Periscope And Other Instruments Wavelength: 400-700nmAR
Material: H-K9L
High Light:

H-K9L KTP Crystals

,

Rhombic Prism KTP Crystals


Product Description

Rhombic prism laser lens 32*2.12*5.54mm 400-700nmAR coating H-K9L material forstereomicroscope, periscope,optical



Description:

KTP(KTiOPO4) crystal is mostly used as nonlinear crystals for frequency doubleing of soild-state Nd:YAG crystal or Nd:YVO4

crystal laser, as it has large nonlinear optical coefficients, wide angular bandwidth and  small walk-off angle, broad temperature

and spectral bandwidth,KTP crystal also has high electro-optic(E-O) coefficient and low dielectric constant,and large figure of

merit,these features make it also widely used in electro-optic application.



Name KTP
Application optical instruments and optical devices
Description make the beam horizontal displacement
Dimensional tolerance ±0.1 mm
Angle tolerance ±3′
Parallelism ≤10″
Effective aperture 85%
Chamfer 45°*0.2mm
Coating AR

H-K9L 32*2.12*5.54mm  700nm AR Coating  Rhombic Prism KTP Crystals 0
