| Place of Origin: | Shaanxi,China(Mainland) |
|---|---|
| Brand Name: | WEIMENG |
| Certification: | CE,ISO |
| Model Number: | WM-G-007 |
| Minimum Order Quantity: | 10 pieces |
| Price: | USD281/piece |
| Packaging Details: | 10*10*15cm carton packed |
| Delivery Time: | 7 days |
| Payment Terms: | T/T,Paypal |
| Supply Ability: | 100 pieces per day |
| Name: | Rhombic Prism Lens | Size: | 40*5.57*2.12mm |
|---|---|---|---|
| Shape: | Square | Tolearance: | ±0.1mm |
| Surface Quality: | 40/20 | Application: | Stereomicroscope And Periscope |
| Material: | H-K9L | ||
| High Light: | 40*5.57*2.12mm KTP Crystals,Stereomicroscope KTP Crystals,Rhomic Prism KTP Crystals |
||

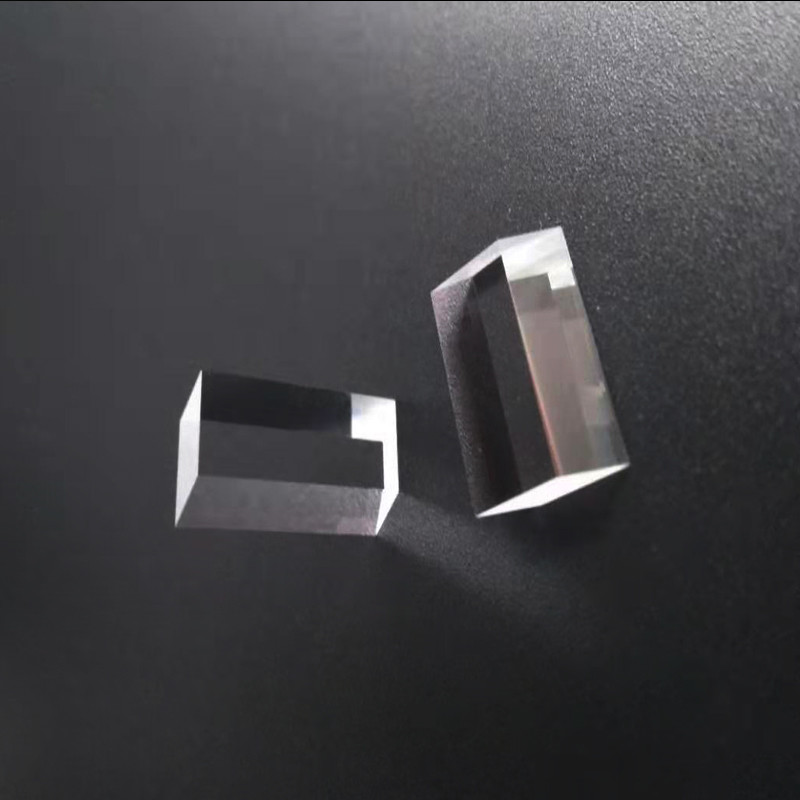

40*5.57*2.12mm H-K9L Rhomic prism Stereomicroscope KTP Crystals
Products description:
Rhomic prism could make the beam horizontal displacemnet, which is widely used in optical instruments and optical devices.
The distance of beam translation can be determined by the size of the prism.
| Name | Rhombic prism |
| Application | optical instruments and optical devices |
| Description | make the beam horizontal displacement |
| Dimensional tolerance | ±0.1 mm |
| Angle tolerance | ±3′ |
| Parallelism | ≤10″ |
| Effective aperture | 85% |
| Chamfer | 45° |
| Coating | AR |
| Incidence angle | 45 degree |
| Material | H-K9L |
Products advantages:
1.Excellent material
2.Fine grinding
3.Factory supply
4.Professional enquipment
Application:
Stereomicroscope and periscope
