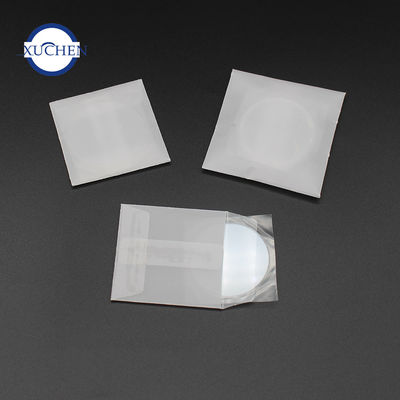

Windows 37×7mm Laser Optical Lens For Precitec Procuttor & Lightcutter & SolidCutter

Basic Information
Place of Origin: Shaanxi, China(Mainland)
Brand Name: XUCHEN
Certification: CE,ISO9000
Model Number: WM-A-045
Minimum Order Quantity: 5 pcs
Price: Negotiable
Packaging Details: 10*10*15cm carton packed
Delivery Time: 7 days
Payment Terms: T/T,paypal
Supply Ability: 1000 pcs per day
Detail Information
Coating: 1064nmAR(Double Coated) Power: 10000W
High Light:

37×7mm Laser Optical Lens


Precitec Procuttor Laser Optical Lens


Lightcutter Laser Optical Lens

Product Description

Laser Protective Windows 37×7mm Optical Lens for Precitec Procuttor & Lightcutter& SolidCutter 0-10kW Head
Description of laser protective lens :
Material: Quartz Fused Silica

Wavelength: 1064nm
Transmittance: 99.8%
Specification of laser protective lens:
Product nameFiber Laser protective lens Windows 37×7mm Laser Optical Lens For Precitec Procuttor & Lightcutter & SolidCutter 0
Coating 1064nmAR
Dia tolearance-0.1mm
Thickness tolearance±0.1mm
Chamfer45 degree*0.2mm
ApplicationLaser welding machine, laser cutting machine
Advantages1. Top quality glass with CE certificate,exporting to more 60 countries in the world
2. Unique designed strong wooden case, solving the problem of breakage
3. Professional sales team, offering personalized and dedicated services.
4. 24-hours online, we could discuss the item whenever and wherever.



Used for Raytools Precitec WSX laser cutting head,
Used for WSX QiLlin welding gun

Protective lens structure

The high-temperature coating of the automatic coating machine adopts the original German coating material, and the anti-reflection coating with high damage threshold is coated on both sides, and the reflection loss is minimized.

Replace the protective lens

1. Take out the protective lens base .
2. Remove the lens from the protective lens base.
3. Press the new lens with washer and install the cutting head.

Function of laser protective lens:
In order to protect the focusing lens, a laser protection lens is designed. For this reason, the cost of laser equipment in the processing process is saved, and it is widely used. such as laser welding machina, laser cutting machine and optical system and so one.

Feartures of laser protective lens:
1. 4-5 times harder than ordinary float glass, stronger resistance to thermal breakage than annealed or heat strengthened glass.
2. once breakage occurs, the glass disintegrates into small cubical fagements, which are relatively harmless to human body.
3. Applicable to the safety glass defined by the Consumer Product Safety Association.
Advantages of laser protective lens:
* Double coating
* Durable
* Stable performance
* Not easy to crack, Imported Quartz crystal material,uniform texture,high technical strength, high temperature and high pressure resitance,and the lens is not easy to crack and collapse.
* Cutting efficiency
Windows 37×7mm Laser Optical Lens For Precitec Procuttor & Lightcutter & SolidCutter 1
