Quartz JGS1 1064nmAR 20*1mm Fiber Laser Protective Lens For Laser Machine

Basic Information
Place of Origin: Shaanxi, China(Mainland)
Brand Name: XUCHEN
Certification: CE,ISO9000
Model Number: WM-A-050
Minimum Order Quantity: 50 pcs
Price: USD190-USD150.5
Packaging Details: 10*10*15cm carton packed
Delivery Time: 7 days
Payment Terms: T/T,paypal
Supply Ability: 1000 pcs per day
Detail Information
Name: Fiber Laser Protective Windows Power: 3000W
Material: JGS1 Fused Silica(Quartz) Wavelength: 1064nm
Transmittance: 99.8% Advantage: High Temperature Resistance
High Light:

20*1mm Fiber Laser Protective Lens

,

JGS1 Fiber Laser Protective Lens

,

1064nmAR Fiber Laser Protective Lens


Product Description

Quartz JGS1 1064nmAR 20*1mm Fiber Laser Protective Lens for laser machine



Description  :


Name:Fiber laser protective lens

Type: Windows

Size:20*1mm
Material: Quartz Fused Silica

Wavelength: 1064nm
Transmittance: 99.8%
Parallelism:≤ 0.1mm
In virtue of the very high transmittance in the infrared , visible, ultraviolet band , the YAG crystal is an excellent material to serve as the optical window and the substrate and has been widely used in many fields, especially in the high-temperature and high-energu radiation application.

Advantages  :

1. Humanized 45 protective  full-angles design safe and easy to use without hurting hands.
2.Select the high quality of Quartz crystal,Long life, used in harsh environments.
3.Double sides coating process
4.High precision machining,
The high-temperature coating of the automatic coating machine adopts the original German coating material, and the anti-reflection coating with high damage threshold is coated on both sides, and the reflection loss is minimized.
5.We have enough stock to meet our customers, also we could make the customized parts.

Application :

Window slice is one of the basic optical elements in optics. It is an optical flat plate that plays the role of protecting electronic components / sensors / semiconductor components in the optical path. The window slice does not change the optical magnification, and only affects the optical path in the optical path. Mechanical properties such as light transmittance, surface precision, thickness, parallelism, and substrate material are important parameter indicators of window slice. You can select the window slice with appropriate parameter indicators according to specific applications., Widely used in optical systems, it is usually used as a protection device between precision electronic instruments and equipment and the environment. At the same time, we can also customize the optical window according to your specific needs.

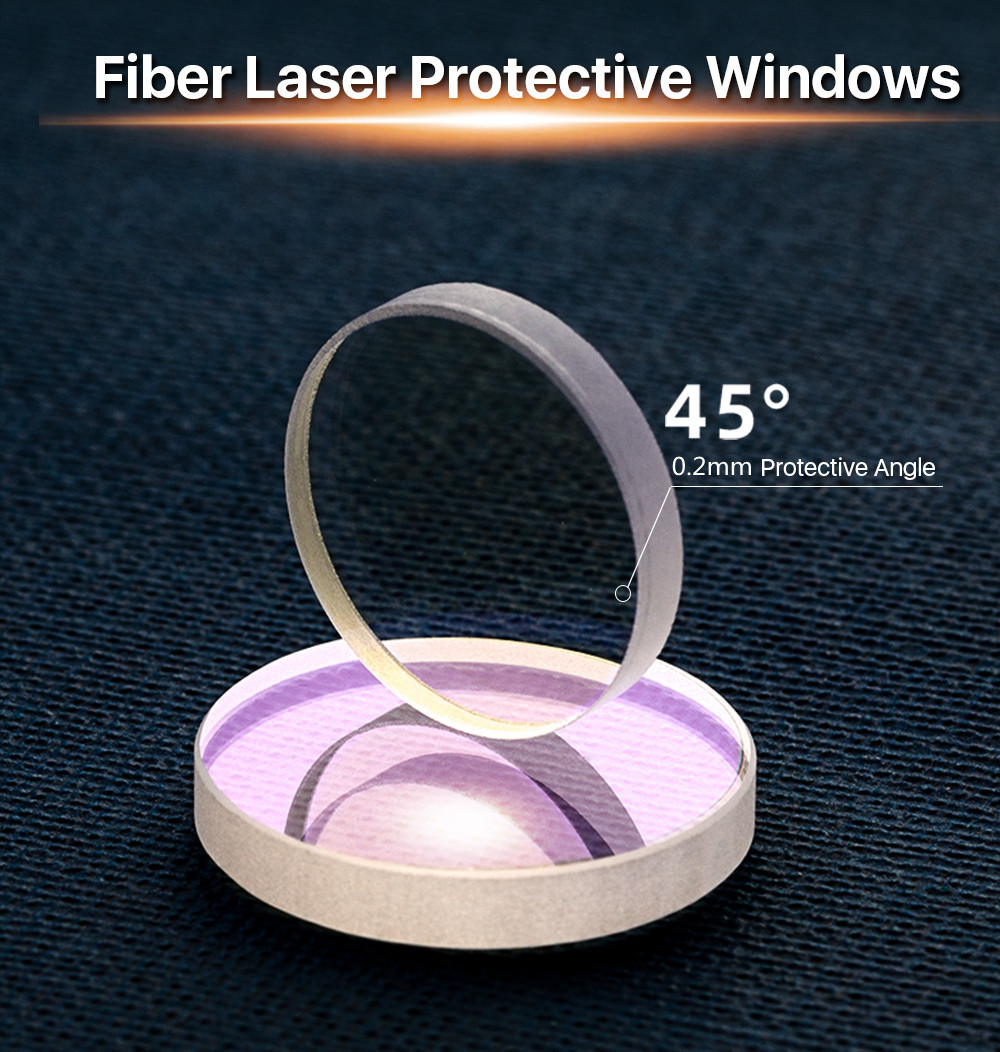

Photo:


Quartz JGS1 1064nmAR 20*1mm Fiber Laser Protective Lens For Laser Machine 0
